In the modern manufacturing industry, slant-bed line-rail lathes are widely used in various precision machining fields due to their excellent machining accuracy and high efficiency. In order to ensure the efficient operation of the lathe, a fast and accurate tool-loading process is crucial. I will introduce in detail how to carry out efficient tool loading operations on the slant-bed line-rail lathe to help operators improve productivity and machining quality!
1. Prepare the tool and tools
Before loading the tool, you first need to ensure that the tool matches the workpiece processing requirements. This includes confirming the type, specification, and material of the tool to ensure that it meets the machining requirements. In addition, preparing a full range of auxiliary tools, such as adjustable tool holders, wrenches, screwdrivers, etc., is also an important step to ensure that the installation of the tool is carried out smoothly.
2. Initial installation of tools
Preliminary installation of tools, first of all, the adjustable tool holder should be installed on the lathe tool holder, and according to the need to insert the corresponding external round cutter or other types of tools. At this time, the pallet should be adjusted to the center of the workpiece for subsequent fine-tuning. Then, by changing the height of the tool holder, the cutting edge of the tool and the surface of the workpiece will be kept at a proper distance from each other, so as to be ready for precise machining.
3. Tool setting operation
Tool setting is a key step to ensure machining accuracy. At this time, the operator should switch the cutting mode of the lathe to manual mode, and slowly start the spindle to observe whether the tool tip accurately contacts the outer circle of the workpiece. In the process of tool setting, if it is found that the tool and the workpiece surface deviation, it should be corrected by adjusting the position of the tool holder or the spindle position to ensure that the tool can cut accurately along the predetermined trajectory.

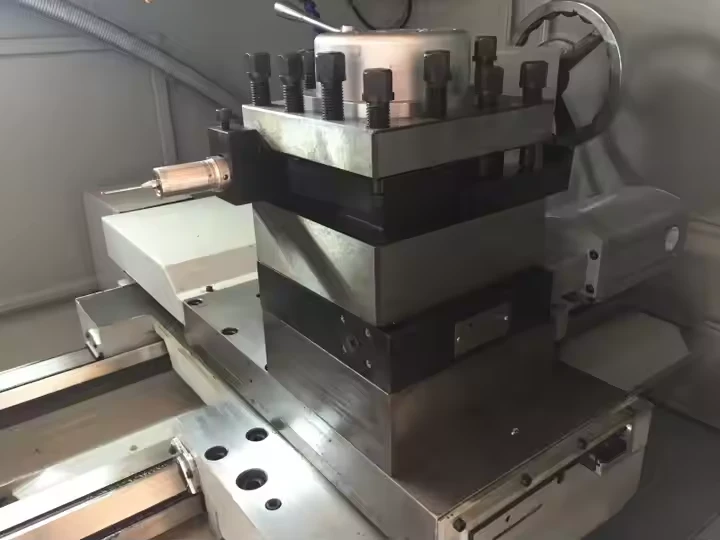

4. Tool locking
After completing the tool setting operation, it is important to lock the tool. Use a wrench or screwdriver to tighten the screws on the tool holder and spindle to ensure that the tool will not loosen or shift in position during machining. During this process, the operator should recheck the tool mounting position and tool setting accuracy to ensure that the tool is stable and aligned.
5. Test cutting and adjustment
Before the official start of production, test cutting operation is very necessary. Trial cutting can help the operator verify whether the tool installation and tool setting accuracy is accurate. By observing the wear of the cutting edge, the quality of the cutting surface machining efficiency, and other indicators, it is possible to identify potential problems and make adjustments promptly. If abnormalities are found in the cutting process, such as roughness of the cutting surface or rapid tool wear, timely adjustment, and optimization should be carried out.
The fast tool-loading operation of a slant-bed line-rail lathe requires that the operator not only has rich experience but also needs precise skills and high professionalism. Through scientific and reasonable tool selection and installation, accurate tool setting operation, and strict locking measures, it can ensure the stable and efficient operation of the lathe and improve the machining accuracy and productivity. At the same time, operators should keep learning and mastering new technologies to cope with the ever-changing machining demands and market competition.
