What Is Gantry Machining Center
A gantry machining center (or gantry milling machine, gantry mill) is a distinctive machine tool with a double column structure. The gantry refers to the CNC milling machine that hangs above the work table to perform machining operations. It is the rapid movement of the gantry that makes this machine particularly efficient. The gantry type machining center is a new type of processing technology, and its main work is to compile processing programs, which means to turn manual work into computer programming, and to compile all the process processes, process parameters, and displacement data to be processed into a program, which is used to control the machining of the machine tool.
Advantages of Gantry Machining Center
Unrivaled precision and accuracy
When it comes to producing intricate components with utmost precision, gantry machining centers excel. These machines utilize advanced technology to ensure accuracy in every operation.
Versatility and flexibility
Gantry machining centers are known for their exceptional versatility. They can handle a wide range of materials, from metals to composites and plastics. The gantry design allows for larger workpieces, enhancing production capabilities for industries that require significant dimensions.
Enhanced automation and ease of use
In today's fast-paced manufacturing industry, automation is crucial for staying ahead of the competition. gantry machining centers are at the forefront, seamlessly integrating automation features.
Innovation in design and construction
The design and construction of gantry machining centers have undergone significant advancements, resulting in improved performance and durability. Cutting-edge materials are used to ensure rigidity and stability, while precision ball screws and linear guides guarantee smooth and accurate movement.
Why Choose Us
Gantry machining centers have become a popular choice in the manufacturing industry due to their versatility and precision. These machines offer high-speed machining capabilities and can handle a wide range of materials. However, even with their advanced technology, certain mistakes can hinder their performance and efficiency. In this blog post, we will discuss some common mistakes to avoid while operating a gantry machining center to optimize its productivity and ensure long-term success.
To fully utilize the potential of a gantry machining center, it is essential to have a solid understanding of its capabilities and functionalities. Many operators make the mistake of not receiving proper training, leading to inefficient operation and subpar results. Operating a gantry type machining center involves programming, tooling, and knowledge of various machining techniques. Without the necessary training, operators may struggle to grasp the full potential of the machine, resulting in wasted time and resources.
Another common mistake is neglecting regular maintenance and cleanliness of the gantry machining center. These machines consist of numerous moving parts and intricate mechanisms that require proper care and attention to operate at their best. Failure to regularly clean and maintain the machine can lead to several issues, including reduced accuracy, poor surface finish, and even machine breakdowns. Dust, debris, and coolant residue can accumulate on various components, hindering their smooth operation and causing premature wear and tear.
To avoid this mistake, a strict maintenance schedule should be followed. This includes regular cleaning of the machine, ensuring coolant levels are adequate, and replacing worn-out or damaged parts promptly. It is also important to train operators on basic maintenance tasks and encourage reporting of any abnormal machine behaviors for immediate attention.
How Gantry Machining Centers Revolutionize Industrial Manufacturing
Gantry machining centers have emerged as a game-changer in the world of industrial manufacturing. These cutting-edge machines offer remarkable precision and a range of capabilities that surpass traditional machining methods. Whether it is milling, drilling, or shaping, CNC gantry type machining center deliver top-notch results with exceptional accuracy.
One of the key features that sets gantry machining centers apart is their gantry structure. This design allows for a larger workspace, making it possible to process larger and more complex workpieces with ease. The vertical clearance and the ability to move the gantry along the X, Y, and Z axes contribute to the incredible versatility of these machines. Another significant advantage of gantry machining centers is their ability to automate processes. Through the use of computer-controlled systems, these machines can operate continuously, minimizing downtime and maximizing productivity. This level of automation ensures consistent quality and faster production times, enabling businesses to meet customer demands more efficiently. gantry machining centers also excel in their ability to handle a wide range of materials. Whether it is metal, plastic, or wood, these machines can cut through them effortlessly, delivering precise results every time. This versatility makes gantry CNCs indispensable in industries such as automotive, aerospace, and furniture manufacturing.
The introduction of gantry machining centers has revolutionized industrial manufacturing in numerous ways. These machines have not only enhanced production capabilities but have also made manufacturing safer and more cost-effective. By minimizing human error and streamlining workflows, gantry machining centers significantly reduce the chances of defects or flaws in the final product. This reduction in errors contributes to improved product quality and customer satisfaction. Furthermore, the automation capabilities of gantry machining centers result in reduced labor costs. Manufacturers can save on manual labor expenses while achieving higher production volumes. This cost-effectiveness allows businesses to invest in research and development, further advancing their products and processes.
The precision and efficiency of gantry machining centers also contribute to reducing material waste. With accurate cutting and shaping, manufacturers can optimize material usage, minimizing scrap and maximizing the utilization of resources. This not only benefits the environment but also helps businesses cut costs in the long run. Their advanced features, precision, versatility, and automation capabilities have transformed the way businesses operate. By enhancing production capabilities, improving product quality, reducing labor costs, and minimizing material waste, gantry CNCs have become an indispensable asset in the manufacturing industry.
Many industries need to select different sizes of parts for fixing and installation in order to ensure the best application effect of the parts during use. In the production and processing of large-sized parts, a gantry machining center will be used. Traditional equipment can also complete the production process of parts, but in terms of speed and efficiency, it cannot compare with this equipment.
When installing the gantry machining center, the manufacturer needs to understand the application method of the equipment. The staff needs to be familiar with the correct use method of the equipment and be very familiar with the structural characteristics and advantages of the equipment, so as to ensure that the parts can be processed more efficiently and conveniently through the equipment during the production process. You also need to master emergency handling. Sometimes, equipment may experience failures during the production process, or sudden incidents may occur due to the influence of external environment. At this time, staff need to stop the operation immediately by pressing the button to avoid adverse factors affecting the processing effect of the parts.
When using the gantry machining center for part processing, it is also necessary to pay attention to wearing protective clothing and safe operation during machining. The gantry machining equipment is fixedly installed and requires a dry and ventilated environment for use. It cannot be used in a humid environment. In addition, if the staff find abnormal noise during the production process, they need to check the working condition of the equipment in time. During the production operation using the gantry machining center, it should be noted that no other materials or items should be placed around the equipment to avoid adverse effects on production work.
Correct Operating Procedures for Gantry Machining Centers
The operator should be familiar with and master the performance and characteristics of the gantry machining center. Ensure that the emergency stop switch can quickly and effectively play a role in emergency situations to avoid accidents.
Wear labor protection articles in accordance with regulations, and gloves are strictly prohibited when operating. When the cnc gantry mill machining center is working, do not touch the electronic switch with wet hands to avoid electric shock. Do not touch any moving parts with your hands. Tools or non-processing workpieces should not be placed on the gantry machining center or moving objects. The computer table or work table next to the machine must be sturdy and not placed on moving objects.
When working on the workpiece, stop the machine first and pay attention to maintaining a proper distance between the workpiece and the tool. Do not open the front door and left and right covers arbitrarily while the machine is running to avoid injuries. After setting the tool, first run a DRY RUN to ensure that the program is correct and error-free. When the power is disconnected or emergency stop is activated, the three axes should be restored to the mechanical origin position when shutting down. Do not disassemble any related parts of the travel switch or any protection switch without authorization.
When the gantry machining center finishes its work and the operator leaves the machine, the control power switch on the operation panel and the electrical box should be turned off.
Structural Features of Gantry Machining Center
Workbench
The workbench of the gantry machining center is basically rectangular. Large castings such as tables, beds, columns, beams and rams are made of cast iron or welded parts. And the inner cavity of the castings is a honeycomb composite arrangement structure. With advanced design, all which are treated by aging and secondary tempering. Eliminating residual internal stress to stabilize the material. Ensuring the stability of workpiece processing accuracy and machine tool life.
Gantry
Consists of a beam and two columns. It is divided into three types: Beam fixation, beam by positioning block locking section lifting and beam arbitrary lifting.
Sliding sleep
From the structure, it can be divided into two types: Open and closed. The ram of the open structure is clamped on the headstock by the pressure plate, and the cross-sectional area of the ram is large; the ram with closed structure is clamped in the headstock box, and the cross-sectional area of the ram is small.
Tool magazine
There are three basic types: Turret type, wheel drum type and chain length type.
Accessory head library
The machining of large and complex parts often requires many accessory heads. The accessory head is specially designed according to the processing requirements of the workpiece, and is generally divided into right angle head, extended head, special angle head and universal head.
Cnc system
According to different needs, system brands and models have different choices.
Accuracy
Refers to the original accuracy of the machine tool under the condition that it is not subjected to external load. Accuracy is usually expressed by the deviation between its opposite side and the ideal state (referred to as error), the smaller the error, the higher the accuracy.
Types of Gantry Machining Center
Fixed crossrail type
The column is fixed, and the spindle moves left and right on the crossrail. The spindle itself moves up and down, and the table moves in a direction perpendicular to the crossrail.
Crossrail moving type
The column is fixed; the spindle moves left and right on the crossrail, and the crossrail moves up and down. The table moves in the same way as in the fixed crossrail type.
Gantry type
The table is fixed, and the column moves along the table. There are two types of crossrail movement: Fixed type and movable type.
How to Maintain the Gantry Machining Center
The gantry machining center machine has a strong comprehensive processing capability. After the workpiece is clamped at one time, it can complete more processing content. The machining accuracy is high. For batch workpieces with medium processing difficulty, the efficiency is 5-10 times that of ordinary equipment, especially It can complete much processing that cannot be completed by ordinary equipment, and is more suitable for single-piece processing with complex shapes and high precision requirements, or multi-variety production of small and medium batches. Flexible, lightweight, and has the advantages that other similar devices cannot replace. Can plan, design, and manufacture according to customer's parts processing requirements.
Outside maintenance Keep the inside and outside surfaces of the machine tool. When changing products, clean the work surface as necessary, and check and repair burrs at any time. Keep the spindle and tool magazine clean. Check the tool magazine when the machine is turned on. The spindle needs to run at low speed for 10 minutes before working. The handles and sleeves are neatly placed to prevent rust. Check that the screws are not loose and pulled. Keep the appearance of the computer clean and dust-free. Clean up junk files and organize folders at any time. Electric control box Keep clean and dust-free.
Lubricating oil Checking the oil quantity in the oil sump requires that the lubrication mechanism has good performance and is safe and reliable. Coolant to eliminate leakage and blockage. The air duct and air qiang are kept clear and there is no air leakage. The tool box and table are kept clean inside and outside, neatly placed, and the workpiece is rust-proof.
Our Factory

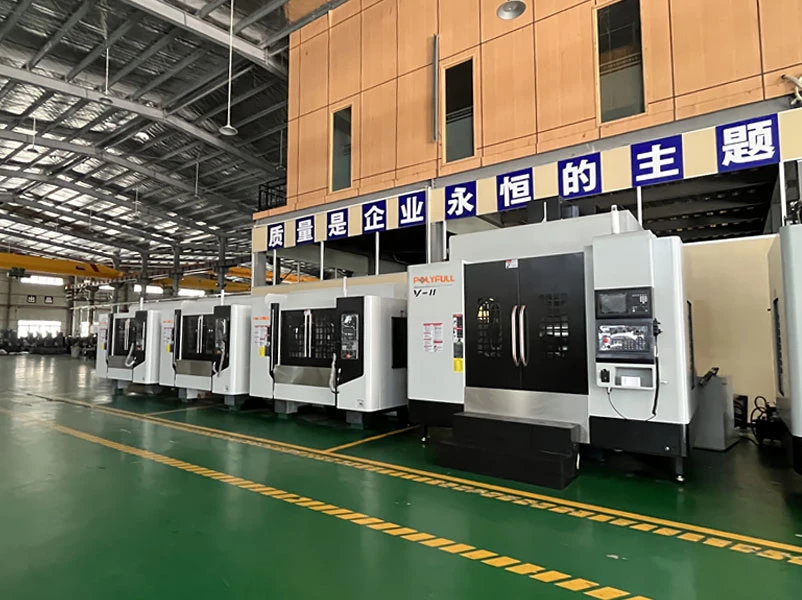

Dalian Polyfull Intelligence Technology Co.,Ltd. is a professional machine tool manufacturing enterprise, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field. Meanwhile we are a company that produces automated robots. We can design,develop, install, test, debug industrial robot, it’s units and related accessories including fixture transmission device, positioning device and control system. We can provide welding robot, slicing robot,painting robot,assemble robot，burnishing robot，handing robot，inspect robot，arc welding robot and so on. We have provided many references for the automation industry in China.
