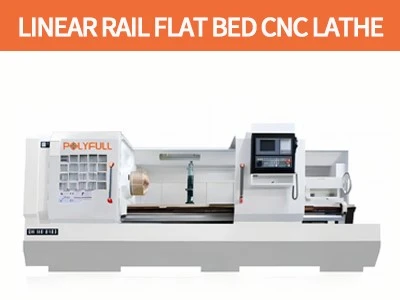

The Linear Rail Flat Bed CNC Lathe is a state-of-the-art machine designed to meet the rigorous demands of modern manufacturing. With its advanced features and robust construction, it offers unparalleled precision, ease of use, and exceptional performance in various industrial sectors, including automotive parts processing, mechanical equipment tools, and auto parts manufacturing.
Key Features and Benefits
Ball Linear Guides for Enhanced Precision and Ease of Maintenance The lathe utilizes high-quality ball linear guides, ensuring smooth movement and improved operational accuracy. These guides facilitate easy installation and maintenance, making the machine highly efficient in automatic and semi-automatic modes. Integrating these guides reduces friction, enhances load-bearing capacity, and contributes to the machine's overall reliability.
Resin Sand Casting for Strong, Stable Bed Construction The bed of the CNC lathe is constructed using resin sand casting technology, a method known for its durability and high precision. The bed's width measures a robust 425mm, offering excellent stability during operation and ensuring minimal vibration. This construction technique provides superior mechanical strength, reducing deformation over time and maintaining high accuracy during machining.
Medium-Frequency Quenching for Enhanced Hardness and Durability The machine employs medium-frequency quenching, enhancing the material's hardness to HRC52 or higher, with a quenching depth of greater than 2mm. This treatment significantly increases the surface strength and wear resistance of the components, ensuring long-lasting performance even under heavy-duty usage.
Reliable Transmission System for Consistent Performance The lathe's main transmission system is equipped with a mechanical three-speed manual transmission as standard. This robust system allows for consistent power transmission, optimizing machining performance. The versatility of the system makes it suitable for various machining tasks, including auto parts manufacturing and mechanical equipment tools production.
External Oil Tank Lubrication for Optimal Spindle Performance To maintain the CNC spindle's accuracy and prevent heat-induced deformation, the lathe uses an external oil tank lubrication system. This innovative feature reduces the impact of thermal expansion on the spindle, ensuring that the machine operates at peak performance levels even during extended periods of use.
Standard Configuration
Self-Centering Chuck Options: The lathe is equipped with a manual three-jaw self-centering chuck by default, with optional upgrades to a four-jaw chuck or hydraulic chuck for increased versatility in auto parts processing.
Electric Tool Holder: A 4-station electric tool holder is provided as standard, with the option to upgrade to a 6-station electric tool holder or a row-type cutter head for more complex machining tasks.
Tailstock Options: The standard manual tailstock can be upgraded to a hydraulic tailstock, offering improved precision and efficiency in part alignment.
CNC Control Systems: The lathe comes with a GSK980 CNC system as standard, with optional upgrades to Huazhong, FANUC, or SIEMENS systems for enhanced flexibility and control.
Comprehensive After-Sales Service
One-Year Warranty: The machine comes with a one-year warranty, ensuring peace of mind for our customers.
24/7 Customer Support: Our dedicated after-sales customer service team is available online 24/7, providing prompt responses to any queries and technical support.
Overseas Service Availability: Our engineers are available for overseas after-sales service, ensuring that your machine operates smoothly regardless of location.
Local Technical Service Center: We are actively working to establish a local technical service center to further improve customer support and service efficiency.
The Linear Rail Flat Bed CNC Lathe is an ideal choice for manufacturers looking to enhance their machining capabilities in fields such as automotive parts processing and mechanical equipment tools manufacturing. With its robust design, precise machining capabilities, and comprehensive support services, this lathe provides the perfect balance of performance, reliability, and affordability. Whether you are producing auto parts molds, metal body parts, or mechanical tools, this CNC lathe offers the precision and flexibility needed to meet your manufacturing requirements.
