Product Description

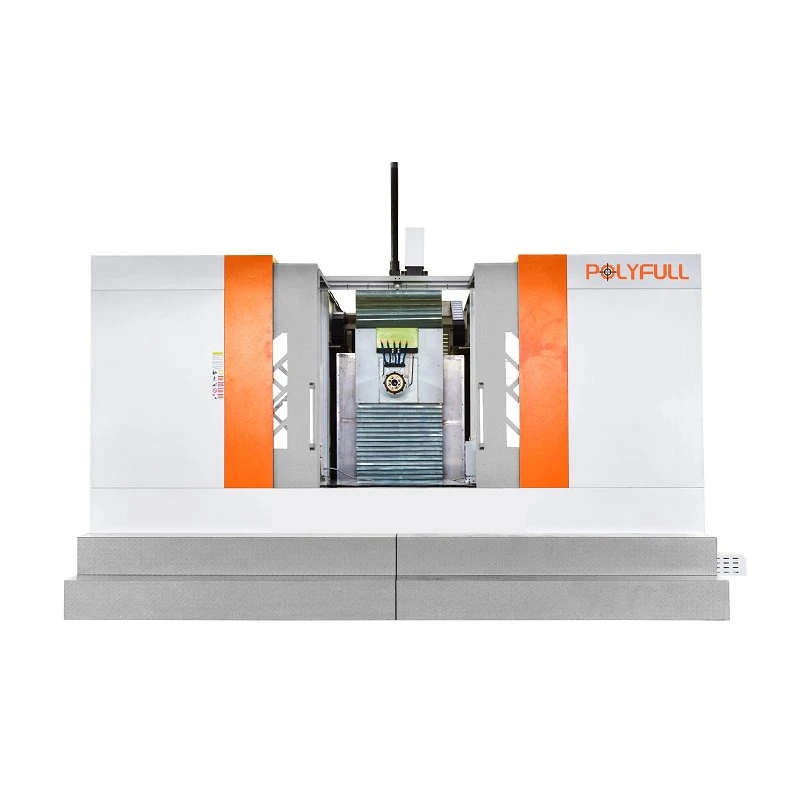

The horizontal machining center has high structural rigidity, stable performance, and good market price performance ratio. It is the first choice for the majority of users to purchase horizontal machining centers.
Its base is an inverted T-shaped structure with high structural rigidity and is supported by sliding guide rails. The gantry-shaped column, high-rigidity saddle, and strong spindle head reflect the high rigidity and strong capacity of the machine tool.
The main shaft transmission system has the servo motor directly transmitted to the high-precision main shaft through the synchronous belt, which has the characteristics of high transmission efficiency, low noise and small vibration, so that the output power of the main shaft is constant and the processing efficiency is improved.
Anti-collision design, when the overtravel occurs, it can avoid the direct collision between the nut seat and the motor seat and the bearing seat, so as to ensure the damage of the machine tool to the machinery and the precision of the machine tool.
The integrated oil-water separation structure enables the perishable lubricating oil and cutting fluid to be recycled separately, avoiding the stench of cutting fluid deterioration.
Optional
Spindle (Domestic / imported brands are optional) Electric spindle 18000-24000 turn with turning function
Tool magazine Disk 24 tool magazine
Rotating platform (Domestic / imported brands are optional) The fourth axis of the platform
Cradle turn
Cradle with turning function transfer table
Controller system Siemens 840
Fanuc
Mitsubishi
Syntech
China KND Digital
GSK( China Guangzhou Digital)
