Cooperative Robot

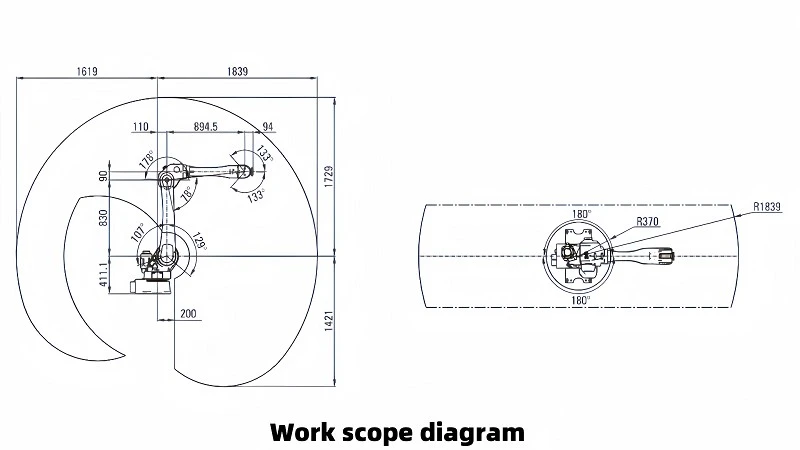

The 6-axis Cooperative Robot is suitable for complex tasks requiring a large number of degrees of freedom. With a maximum arm length of 1839mm and a maximum load capacity of 25kg, the robot's lightweight arm design and compact mechanical design allows it to work flexibly in tight spaces and meet the demands of flexible manufacturing. It can be adjusted on six different levels.

Its six-axis design provides sufficient flexibility and precision to meet the needs of most industrial applications, while maintaining the advantages of cost-effectiveness and ease of programming, effectively mimicking the range of motion of a person's arm.

The 6-axis Cooperative Robot is mainly used for loading and unloading, injection molding machines, die casting, assembly, painting, polishing, testing and so on. The body is IP54 rated and the wrist is IP67 rated, making it both dust and water resistant. Repeatable positioning accuracy is 0.05mm.

6-axis Cooperative Robots are particularly powerful and versatile, and are widely used mainly in the semiconductor industry, CNC, medical, automotive manufacturing, food processing, catering, machinery manufacturing and other industries.

They are mainly used for visual inspection, checking, loading and unloading, handling, palletizing, assembling, polishing, grinding, cutting, spraying, arc welding, etc..

1. Accuracy: closed-loop control of position, speed and torque; Solve the problem of stepping motor out of step;

2. Speed: Rated speed usually reaches 2000 ~ 3000rpm, with good high-speed performance;

3. Flexibility: It can withstand the load of three times the specified torque and has good overload resistance. This is especially useful for situations where quick starts and load changes are required;

4. Stable: suitable for low-speed operation when high-speed response is required;

5. Timeliness: the dynamic response time of the motor acceleration and deceleration is fast, often in the range of tens of milliseconds;

6. Comfort: Noise and heat are significantly reduced.

1. The warranty period is one year,.
2. After-sales service 24 hours online answer your questions, and summarize the feedback to the technical staff.
3. Our company's engineers can provide overseas after-sales service.
