Hey there! As a supplier of Inclined Bed CNC Lathes, I often get asked about how accurate these machines really are. So, I thought I'd sit down and write this blog to share my insights on the accuracy of Inclined Bed CNC Lathes.
First off, let's talk about what makes an Inclined Bed CNC Lathe unique. Unlike traditional flat - bed lathes, inclined bed lathes have a slanted bed design. This design offers several advantages that contribute to their accuracy.
One of the key factors affecting accuracy is the stability of the machine. The inclined bed design provides better chip evacuation. When you're machining, chips are produced, and if they aren't removed properly, they can interfere with the cutting process. With an inclined bed, gravity helps the chips fall away from the cutting area more easily. This means that there's less chance of chips getting in the way and causing inaccuracies in the machining. For example, in a Hard Rail Inclined Bed CNC Lathe, the hard rails offer high rigidity. The combination of the inclined bed for chip evacuation and the rigid hard rails gives the machine a stable platform for precise machining.

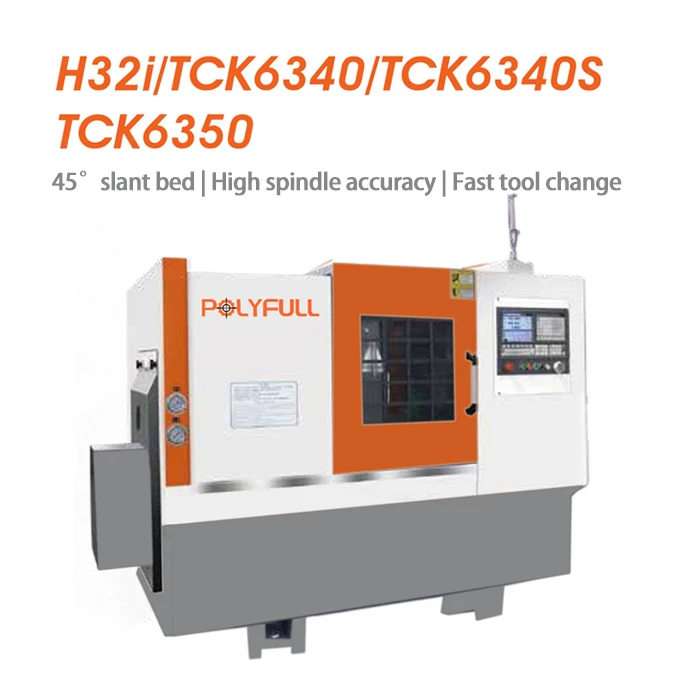

Another aspect related to accuracy is the movement of the cutting tool. In an Inclined Bed CNC Lathe, the linear motion of the tool is often more precise. The design allows for better distribution of forces during cutting. When the cutting tool is moving along the workpiece, the inclined bed helps in reducing the vibrations. Less vibration means that the tool can make more accurate cuts. The Inclined bed linear guideway CNC lathe takes this a step further. The linear guideways offer low friction and high - speed movement, enabling the tool to move with great precision, resulting in highly accurate parts.
The control system of a CNC lathe is also crucial for accuracy. Modern Inclined Bed CNC Lathes are equipped with advanced control systems. These systems can precisely control the speed of the spindle, the feed rate of the cutting tool, and the depth of cut. They can execute complex machining programs with a high degree of repeatability. For instance, if you need to produce multiple identical parts, the control system can ensure that each part is machined to the same specifications.
Now, let's talk about the accuracy in terms of dimensional tolerance. Inclined Bed CNC Lathes can achieve very tight dimensional tolerances. Depending on the quality of the machine and the machining conditions, dimensional tolerances as low as a few micrometers can be achieved. This level of accuracy is essential in industries such as aerospace, automotive, and medical device manufacturing. In the aerospace industry, for example, parts need to be machined with extremely high precision to ensure the safety and performance of aircraft.
However, achieving high accuracy isn't just about the machine itself. The operator also plays a significant role. A skilled operator knows how to set up the machine correctly, select the appropriate cutting tools, and optimize the machining parameters. They can make adjustments on the fly to compensate for any minor variations in the machining process.
Maintenance is another factor that affects accuracy. Regular maintenance of an Inclined Bed CNC Lathe is necessary to keep it in top - notch condition. This includes cleaning the machine, lubricating the moving parts, and checking the alignment of the components. If a machine isn't properly maintained, its accuracy can gradually decline over time. For example, if the linear guideways aren't lubricated regularly, the friction can increase, leading to less precise movement of the cutting tool.
In addition to the mechanical and control - related aspects, the material being machined also impacts accuracy. Different materials have different properties, such as hardness, ductility, and thermal conductivity. These properties can affect how the material responds to the cutting process. For example, machining a hard material like titanium requires different cutting parameters compared to machining a softer material like aluminum. A good operator will take these material properties into account to ensure accurate machining.

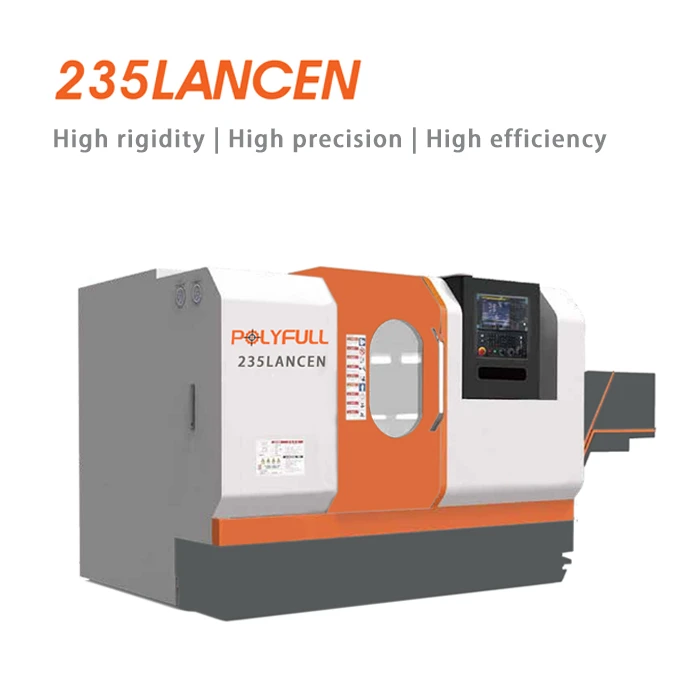

Let's take a look at the High Speed Slant Bed CNC Lathe. The high - speed operation of this type of lathe can pose some challenges to accuracy. At high speeds, there's more heat generated during cutting, which can cause the workpiece and the cutting tool to expand. This thermal expansion can lead to dimensional inaccuracies. However, modern high - speed inclined bed CNC lathes are designed with features to compensate for thermal expansion. For example, they may have cooling systems to keep the temperature stable during machining.
In conclusion, Inclined Bed CNC Lathes are highly accurate machines when properly maintained, operated by skilled personnel, and used under the right conditions. They offer a combination of mechanical stability, advanced control systems, and precision components that enable them to produce parts with very tight dimensional tolerances.
If you're in the market for an Inclined Bed CNC Lathe and want to discuss how our machines can meet your accuracy requirements, feel free to reach out. We're always happy to have a chat about your specific needs and see how we can help you achieve the best results in your machining operations.
