M-L2900 Advanced 3-Axis Vertical Machining Center for Precision Metalworking
Polyfull factory' s M-L2900 Advanced 3-Axis Vertical Machining Center is a high-performance solution tailored for modern manufacturers who demand accuracy, speed, and reliability. Designed for industries such as automotive, aerospace, and electronics, this 3-axis CNC machining center is engineered to meet complex production needs with ease. With its rigid structural foundation and precision spindle system, the M-L2900 sets a new benchmark in vertical milling technology.
Configuration Features

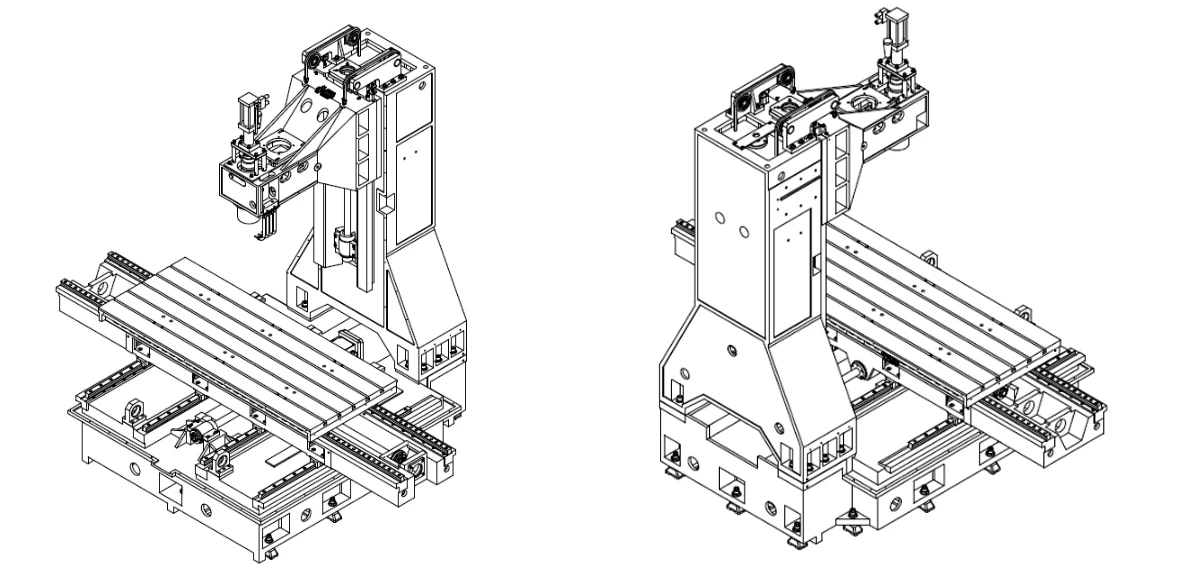

The core structural components of the Vertical 3-axis CNC milling machine, including the bed, drag plate, worktable, column, and spindle box, are manufactured using high-density, thermally stabilized cast iron. This ensures excellent rigidity and vibration resistance, crucial for heavy-duty 3-axis milling for steel and other high-load applications.
The spindle system adopts a synchronous belt drive, reaching speeds of up to 6000 rpm. This design delivers low power loss, minimal vibration, and reduced noise levels, supporting rigid tapping without backlash. Coupled with a spindle oil cooling device, it maintains a stable spindle temperature during extended operation, ensuring high machining accuracy and longer spindle life. This makes it the best CNC milling machine for hard metals and long-cycle production.
Powered by a 7.5/15 kW (ED: 100%/40%) servo motor, the spindle supports high-torque cutting. The XYZ axes use high-efficiency, high-torque AC servo motors directly connected to precision C3 ball screws, eliminating transmission errors and enhancing positioning accuracy. Pre-tensioning mechanisms are used to control thermal deformation, a vital feature in a precision 3-axis machining center.
The machine also incorporates a high-performance Fanuc B-series feed motor with a high-resolution encoder, offering fast response, large thrust, and excellent repeatability-ideal for applications requiring vertical CNC milling for metal fabrication.
Intelligent System Integration
The M-L2900 Vertical machining center for custom metalwork comes equipped with:
Cooling system: 200L coolant tank and 20L/min flow pump for efficient external tool cooling.
Protection system: Fully enclosed guards ensure operator safety and a clean working environment.
Chip removal system: Optional spiral or belt-type automatic chip conveyor for efficient disposal.
Lubrication system: Centralized automatic lubrication pump with pressure monitoring and timed delivery for all guide rails and ball screws, enhancing durability and reducing maintenance.
These features combine to create a complete CNC milling solution for complex parts in industrial production.
Application Fields
The 3-axis vertical CNC for aerospace components, automotive systems, and electronics requires not only precision but also repeatable performance under challenging workloads. The M-L2900 excels in these areas:
1. Automotive Parts Processing
Capable of machining crankshafts, camshafts, and valve seats, this machine ensures high dimensional precision and efficiency. It is particularly effective for CNC vertical milling for automotive parts, where component consistency is critical for engine performance and safety.
2. Aerospace Component Manufacturing
The aerospace sector demands intricate part geometries with tight tolerances. The M-L2900 processes turbine blades, bearing housings, and structural parts with unmatched precision-proving to be the best 3-axis vertical machining center for aerospace-grade materials.
3. Electronics and Semiconductor Industry
With rapid tool movements and stable positioning, the machine supports fast, accurate processing of electronic components such as mobile phone housings and semiconductor fixtures. It is ideal for CNC machining center for aluminum processing, which requires delicate balance between speed and surface quality.
Whether for mass production or high-precision custom parts, the M-L2900 Advanced 3-Axis Milling Center delivers consistent quality and operational reliability. Its optimized structure, advanced drive system, and intelligent thermal control make it a trusted choice for manufacturers worldwide.
Our Services
1. One-year warranty period
2. After-sales customer service will respond to your questions online 24 hours a day and provide summary feedback to the technical staff.
3. Our company's engineers can provide overseas after-sales service
4. Actively preparing a local technical service center
FQA
Q: How is the quality of your machine tools guaranteed?
Q: What is the delivery time of the machine tools?
