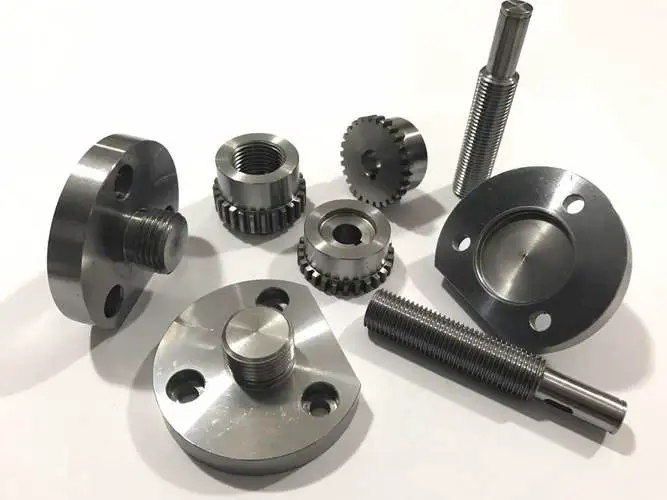

With the progress of society, the Internet of Things and other technologies continue to develop, hard-track CNC lathe in industrial production plays a very important role. A lot of complex hardware parts processing are inseparable from the hard-track CNC lathe, then why in the end it is so "powerful" it, today I will briefly introduce it to it ~!
What is a hard rail CNC lathe?

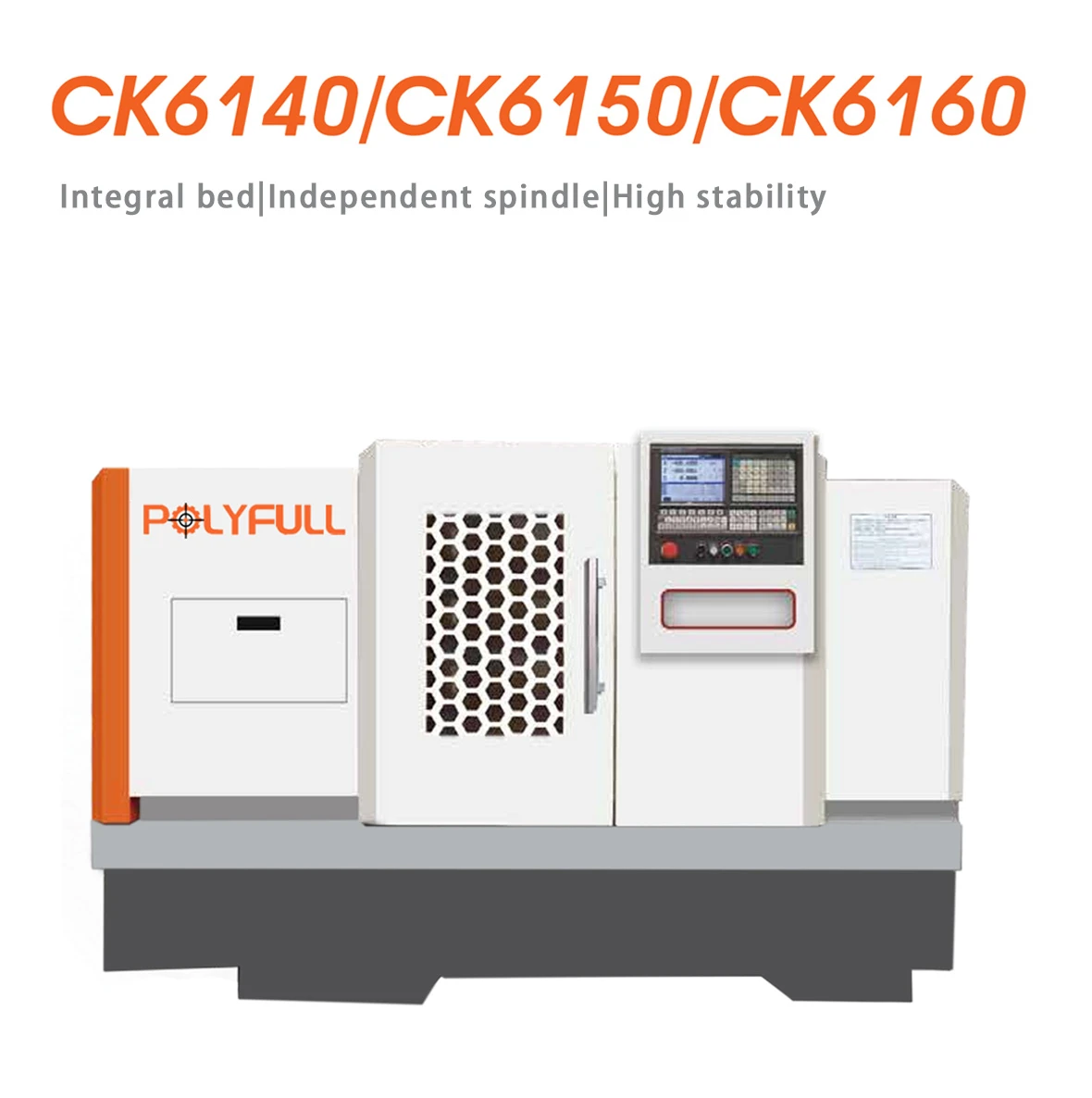

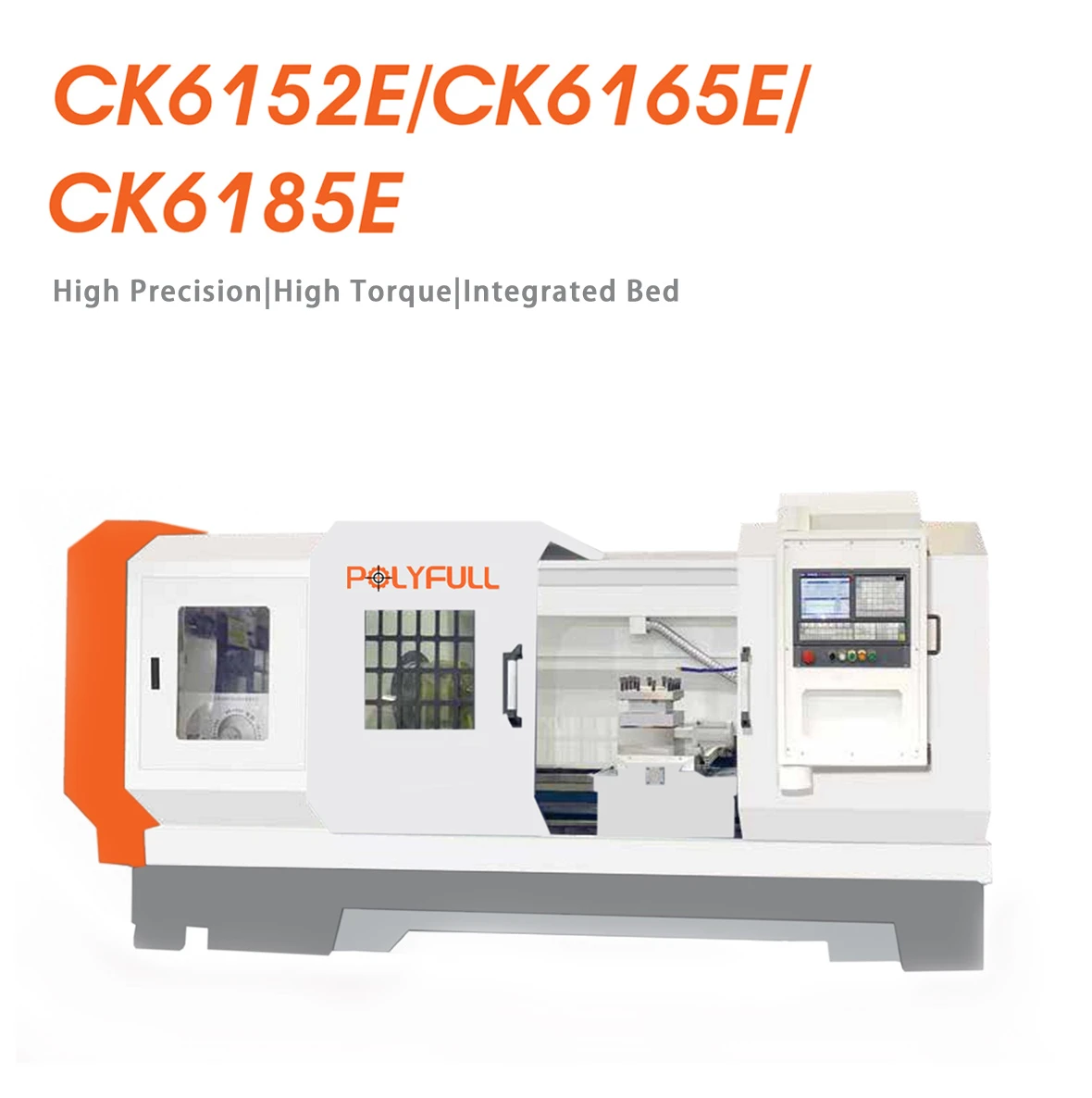

Hard-rail CNC lathe is actually a high-speed, high-precision, high-reliability slanting body CNC lathe, spindle for the unit structure, servo main motor, can reach higher speeds, workpiece clamping selection of hydraulic chuck, making it more convenient to clamping, higher precision, more labor-saving operation, it's spindle bearing structure using a total of 5 angular contact bearings in front of the back of the 3 after the 2, both high-speed and high rigidity, it is very bull!
The main areas of application for hard-track CNC lathes :
Hard-rail CNC lathe is widely used in electrical instrumentation industry, automobile and motorcycle parts of high-precision complex parts processing manufacturing, is the ideal equipment for hardware machinery processing industry.

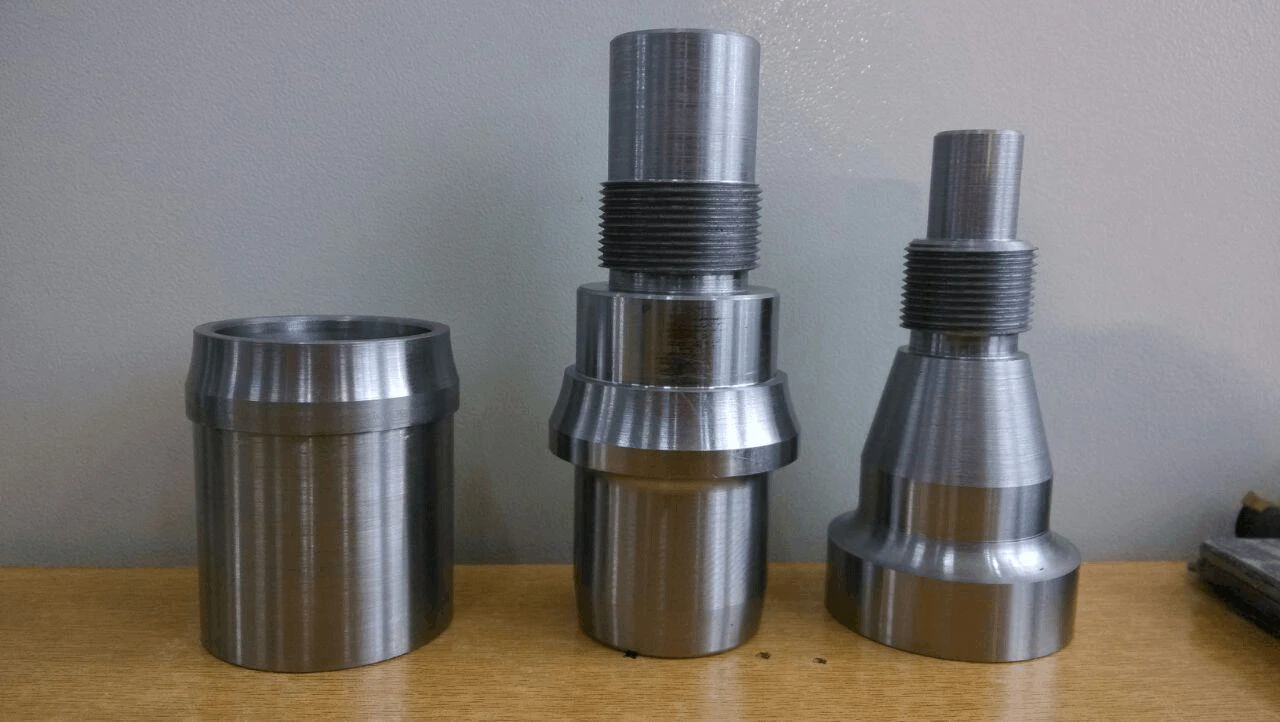

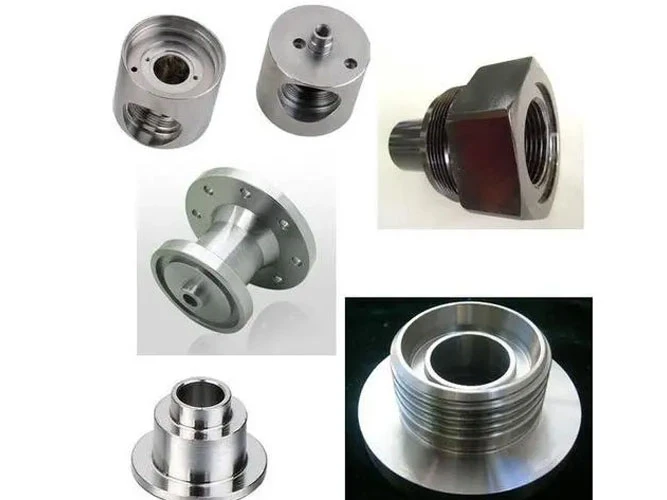

Hard-rail CNC lathe through the CNC system automatic control, for a variety of different bore, external circle, conical surface, arc surface, and thread turning, especially for small and medium batches of shafts, disk parts rough finishing, with a high degree of automation, simple programming, high precision and other advantages.
Structural features and functional requirements of hard rail CNC lathe :
1. The whole machine has compact structure, pleasant appearance, high torque spindle, high rigidity, stable and reliable performance, and excellent accuracy retention.
2. The optimized design of headstock box is suitable for turning of disk and shaft parts, which can process straight line, arc, metric and imperial threads, and multi-head threads, and it can be applied to turning of disk and shaft parts with complex shape and high precision requirements.
3. The lathe guideway and sliding saddle guideway are made of hard guideway with special material, quenched by high-frequency, ultra-hard and wear-resistant, which is durable and maintains good machining accuracy.
4. The CNC system adopts GSK980TDC and servo drive, and adopts domestic famous ball screw and high-precision screw bearing.
5. Each lubrication point adopts forced automatic lubrication device to lubricate the screws and guide rails in fixed points and quantitatively, and when there is an abnormal state or insufficient oil, it will automatically generate a warning signal.
6. The guide rail is equipped with a chip scraping device to prevent the guide rail from being corroded by iron chips and coolant, and to facilitate the cleaning of iron chips.
