CNC machine tool spindle alarm common causes：
1. spindle motor overload
When the spindle motor exceeds the rated load, the alarm may be triggered.
2. spindle bearing damage
Prolonged operation or improper lubrication can lead to bearing wear, which can cause problems.
3. Spindle encoder failure
A faulty encoder may cause inaccurate spindle positioning or signal interruption.
4. spindle drive failure
Failure of the spindle drive can affect the normal operation of the spindle, such as power supply problems or incorrect parameter settings.
5. spindle mechanical structure failure
Mechanical components of the spindle, such as loose connecting parts or insufficient lubrication, may also trigger the alarm.
CNC machine tool spindle alarm solutions
1. spindle motor overload
Check the motor load: use an ammeter to confirm whether the load exceeds the rated value.
Check the status of the motor: to ensure that the motor is not abnormal overheating or damage.
Check the cable connection: ensure that the motor cable connection is solid, not loose or broken.
Verify Drive Parameters: Check that the drive parameter settings are according to the motor specifications.
2. Damaged spindle bearings
Detect bearing condition: Determine whether the bearing is worn by vibration analysis or noise testing.
Check lubrication: Ensure that the appropriate lubricant is used and added or replaced regularly.
Replacement of damaged bearings: Select the correct type of bearing for replacement according to the manufacturer's recommendations.
3. Spindle encoder failure
Check encoder device: Use a multimeter or diagnostic tool to verify that the encoder is not damaged.
Verify Cable Connections: Ensure the encoder cable is not broken or loose.
Check the parameter settings: Proofread the encoder parameters are correct, to ensure that the signal transmission is normal.

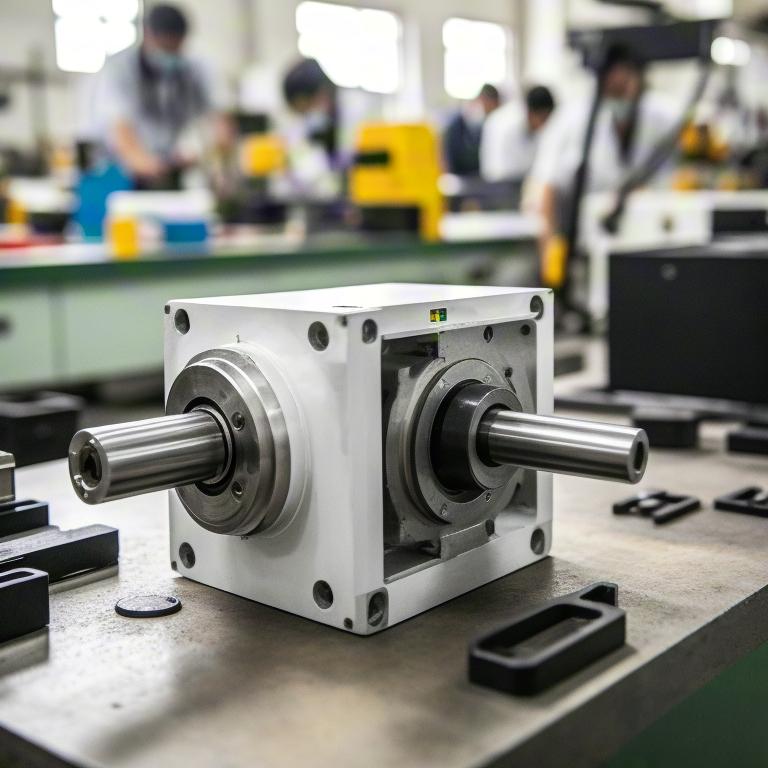

4. spindle drive failure
Check drive status: Check the drive for signs of burnout or short circuit.
Check power supply: Make sure the drive receives stable voltage and current.
Adjust the drive parameters: use the software provided by the manufacturer or instructions to reconfigure the parameters.
5. spindle mechanical structure failure
Check mechanical components: Check whether the spindle and other components of the connection are loose or misaligned.
Verify lubrication status: Check the lubrication system periodically to ensure that the lubricant path is clear.
Detect structural problems: Check the geometric accuracy of the spindle using a coordinate measuring machine and make timely adjustments.
Suggestions for improving the operation stability of CNC machine tools
1. Regular maintenance
Regular cleaning, checking, and replacing worn parts, such as bearings, lubricants, and cables, can effectively reduce failures.

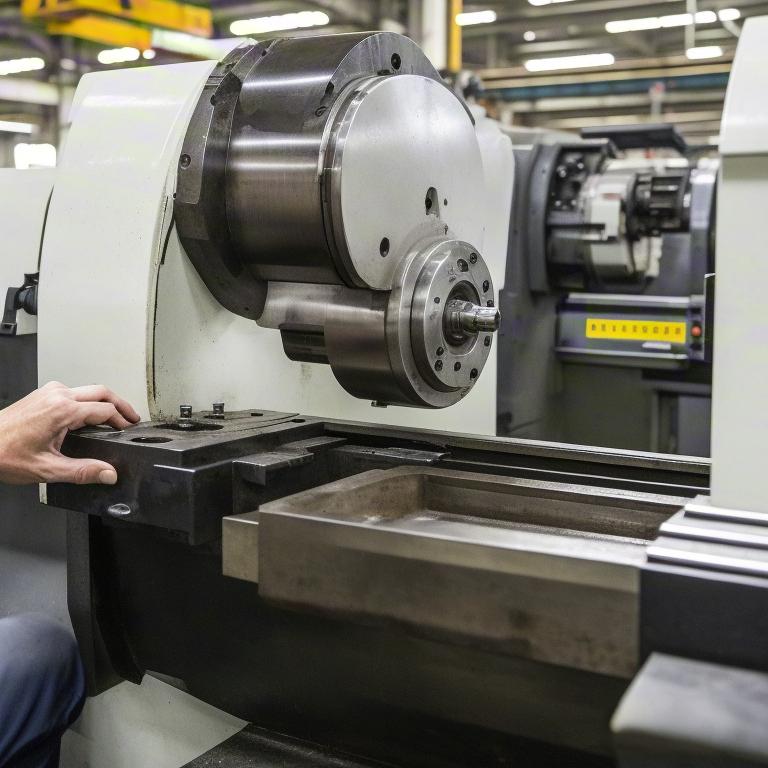

2. Monitoring of operating data
Use modern monitoring tools, such as vibration analysis and temperature sensors, to track equipment operating status. Data shows that regular monitoring can reduce sudden failures by 50%.

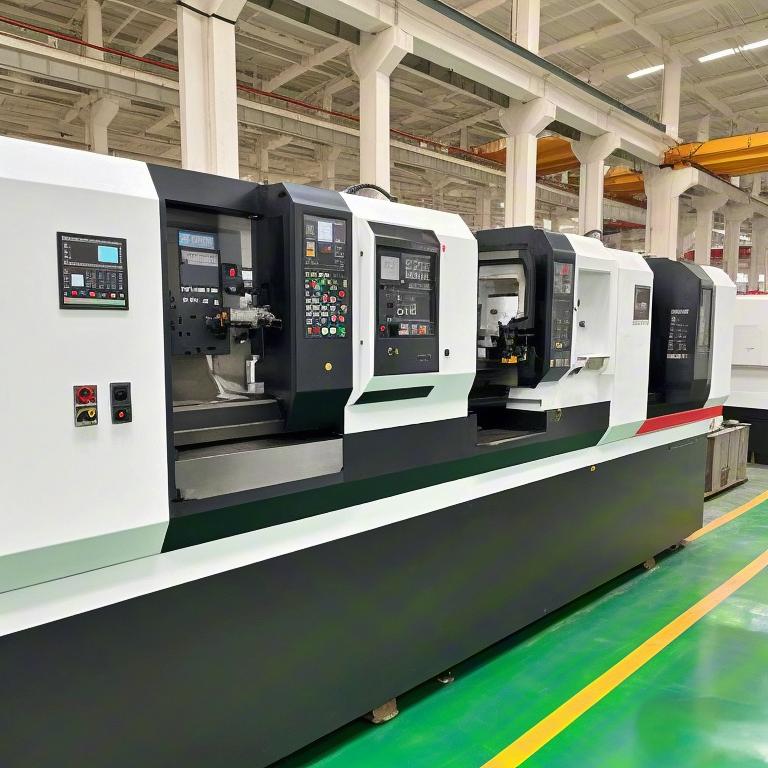

3. Optimize operating processes
Set machining parameters according to the machine's design performance and avoid overloading the machine.
4. Create a fault log
Record each alarm and its handling to help analyze failure modes and develop preventive measures.
